Hentec Industry Co.,Ltd
Aperçu ProduitsProfil d'extrusion d'aluminium

Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper

LA CHINE Hentec Industry Co.,Ltd certifications
LA CHINE Hentec Industry Co.,Ltd certifications
Merci beaucoup de votre soutien de plus de 8 années, nous sommes apprécions vraiment pour la bonne qualité des produits et du service de qualité.

—— James Scott

Nous avons reçu les marchandises, ils semblons parfaits, merci pour l'aide de l'équipe Hentc.

—— Unamuno Ane

Traitement d'en termes de technologie de de l'équipe HENTEC de soutien du dépend du de projet de nouveau de la CE de Le succès de. Efficace de les coûts de manière de contrôler d'à d'assistant de l'à HENTEC de nous de Merci et qualité haute du termes De d'en d'exigences de no. d'à de répondre d'à. Collaboration d'avenir de nous réjouissons de notre de bon sens !

—— Yann Pauwels

Je suis en ligne une discussion en ligne

Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper

Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper

Image Grand :  Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper

Détails sur le produit:
Certification: SONCAP, ISO, RoHS, TUV
Le document: Brochure du produit PDF
Conditions de paiement et expédition:
Quantité de commande min: 500
Prix: 2
Description de produit détaillée
Alliage: 6063, 6061, 6005, 6060, 6082 Caractère: T5, T6, T66
Traitement de surface: Anodisation, enduit de poudre, brossé Forme: Carré
Couleur: Argenté, noir Résistance à la traction: ≥ 160MPA (T5), ≥ 205MPA (T6)
Limite d'élasticité: ≥ 110MPA (T5), ≥ 180 MPA (T6) Élongation: ≥ 8%
Diamètre maximal: 350 mm Capacité de production: 50000PCS/MOIS
Type polonais: Polissage chimique/mécanique Contenu de SI: 0,2-0,6% (6063)
Contenu de magnésium: 0,45-0,9% (6063) Contenu de Fe: 0,35% (6063)
Contenu de Cu: 0,1% (6063)
Mettre en évidence:

6063 T5 Aluminum Cylinder

,

6000 Series Electrical Motor Shell

,

T3-T8 Aluminum Extrusion Profile

Anodized Electrophoresis Anti Scratch 6063 T5 Aluminum Cylinder / Electrical Motor Shell
Electric motor housing aluminum extrusion, also known as aluminum alloy motor shell or servo motor housing aluminum profiles, designed for industrial applications.
Product Features

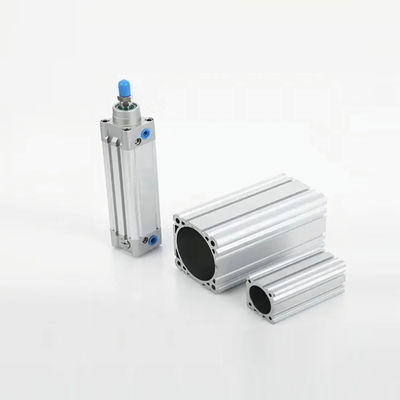

  1. Material: Aluminum Alloy Extrusion Anodized Aluminium Profile for Pneumatic Cylinder
  2. Alloy temper options: 6063, 6061, 6005, 6060, 6082, T5, T6, T66
  3. Manufacturing standards: EN755, ASTMB221, DIN Standard
  4. Surface treatment options: Mill finish, Anodizing, Powder coated, Brushed
  5. Applications: Industrial equipment, Construction components
  6. Key advantages:
    • Pure 99.7% aluminum materials without scrap content
    • OEM services including custom die design and manufacturing
    • Customizable surface treatments to meet specific requirements
    • Strict quality control processes ensure superior quality
    • Hard alloy composition extends product lifespan
    • Safe and convenient packaging solutions
Manufacturing Process
Die design → Die making → Extruding → Cutting → CNC Machining → Surface treatment → Packing
Technical Specifications
Chemical Composition:
Alloy Si Fe Cu Mn Mg Cr Zn Ti Impurity Al
6063 0.2-0.6 0.35 0.1 0.1 0.45-0.9 0.1 0.1 0.1 0.15 Rest
6061 0.4-0.8 0.7 0.15-0.4 0.15 0.8-1.2 0.04-0.35 0.25 0.15 0.15 Rest
6060 0.3-0.6 0.1-0.3 0.1 0.1 0.35-0.6 - 0.15 0.1 0.15 Rest
6005 0.6-0.9 0.35 0.1 0.1 0.40-0.6 0.1 0.1 0.1 0.15 Rest
Mechanical Properties:
Alloy Temper Tensile strength Yield strength Elongation
6063 T5 ≥ 160Mpa ≥ 110Mpa ≥ 8%
6063 T6 ≥ 205Mpa ≥ 180Mpa ≥ 8%
6061 T6 ≥ 265Mpa ≥ 245Mpa ≥ 8%
Technical Support
Our comprehensive support includes:
  • Custom design services including CAD drawings and 3D models
  • Professional R&D team for design analysis and optimization
  • Complete "one-stop" production from design to surface treatment
  • Strict quality control throughout manufacturing process
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 0
Manufacturing Capabilities
Extrusion: 44 aluminum extrusion lines with maximum outer diameter capacity of 350mm, including a 6800 ton extruder for profiles up to 600mm diameter.
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 1
Anodizing: 6 production lines producing uniform oxidation films in various colors including silver, black, gold, champagne, and imitation steel.
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 2 Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 3
Painting: 4 powder spraying lines using Gema Switzerland nozzles with environmentally friendly, durable paints.
CNC Machining: Advanced equipment including 12 PRATIC machining centers, Wegoma cutting machines, 30 punching machines (50-100 ton), and 10 stretch bending machines.
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 4 Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 5 Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 6
Packing and Shipping
Finished products are manually packaged with strict warehouse management procedures ensuring quality control before delivery.
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 7
Certifications
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 8
Company History
2004: Recognized Brand of the Building Industry Material Market
2006: Certificate for Product Exemption from Quality Surveillance Inspection & ISO9001
2009: Advanced Company, Jiangsu Famous Brand Certificate, Credible Product of Quality in Jiangsu Province
2012: Established business relationships with Panasonic and LG
2015: Became innovative producer and supplying partner for BOSCH (Germany)
2017: Developed new baseboard heater products
2019: Cooperated with world's largest heater manufacturers
2023: Expanding overseas distributor network
Notable Projects
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 9
Soccer City Stadium, Johannesburg: Supplied aluminum components for Africa's largest 94,000-seat stadium.
Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 10 Anodized 6063 T5 Aluminum Cylinder Electrical Motor Shell with 6000 Series Alloy and T3-T8 Temper 11
Other Projects: Collaboration with Nordic trailer manufacturer Lobster Trailers and supply of aluminum legs for school furniture projects.
